What Happens When a DPF Blocks? A Real Job from Our Workshop
A blocked Diesel Particulate Filter is one of the most common diesel problems we see at Core Diesel. It’s also one of the most misunderstood – because most people don’t know what a DPF does, why it blocks, or what the fix actually involves.
So here’s a real walk-through from our workshop in Maryborough: what we found, how we cleaned it, and what it cost the owner instead of buying a new one.
What Does a DPF Actually Do?
A Diesel Particulate Filter sits in your exhaust system and captures the fine soot particles that come out of diesel combustion. Over time, those particles accumulate. Under normal driving conditions – particularly highway driving – the filter gets hot enough to burn off the soot in a process called “regeneration.”
The problem is that many diesel vehicles do a lot of short trips, low-speed driving, or towing in heavy traffic. Under those conditions, the filter never gets hot enough to regenerate properly. Soot builds up. Airflow through the filter drops. And eventually your engine management system throws a warning light and puts the vehicle into limp mode to protect the engine.
That’s when we usually see them.
The Job: A Blocked DPF on a Diesel 4WD
A customer brought in a 200 Series LandCruiser with a DPF warning light and noticeably reduced power. The vehicle had been doing mostly local and regional driving – short trips to town, some towing, rarely a long run on the highway. Classic conditions for a blocked DPF.
What we found:
Before we touch anything, we run a pre-clean flow test on the filter. This gives us a baseline reading – how restricted the airflow is compared to a clean filter. On this LandCruiser, the filter was significantly blocked. Flow was down to around 40% of where it should be.
We also pulled a diagnostic scan to check for any underlying fault codes – a blocked DPF can sometimes be a symptom of another issue (a faulty EGR valve or a fuel system problem causing excess soot, for example). In this case, the scan came back clean. The blockage was the problem, not a symptom of something worse.
The clean:

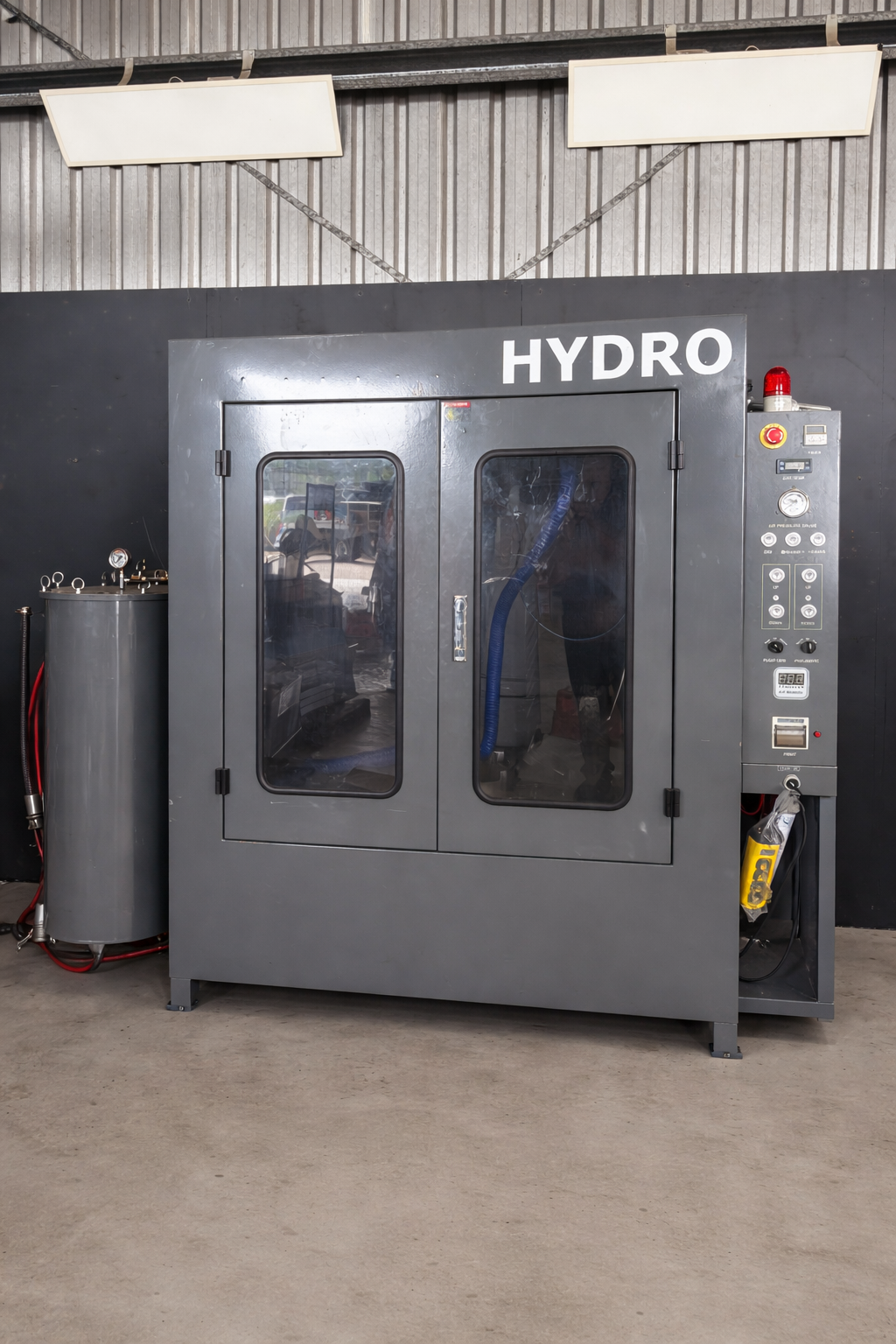

We use the Hydro DCS-20 Pro – a dedicated hydro cleaning system that flushes the filter with a high-pressure water solution, removing the soot and ash that’s built up inside the cells. It’s a precise process: the filter is mounted, treated, and given time to flush properly.
No cutting. No oven-baking. No re-welding. The filter goes back in as one piece.
Post-clean result:
After cleaning, we run the flow test again. On this LandCruiser, flow came back to 94% – effectively factory performance. Warning light gone. Power restored.
The owner drove out the same day.
What Did It Cost?
The DPF clean on this job cost a fraction of a replacement filter. A new OEM DPF for a 200 Series LandCruiser typically runs $2,000–$4,000 or more, plus labour to fit it.
The cleaning service was well under $1,000.
Not every DPF can be saved – if the filter is cracked, melted, or structurally damaged, cleaning won’t fix it and replacement is the only option. But in our experience, the majority of blocked DPFs we see are candidates for cleaning rather than replacement. We always inspect and flow-test first, and we’ll tell you honestly if a replacement is the better call.
How Do You Know If Your DPF Is Blocked?
The most common signs:
- A DPF warning light on the dash (on some vehicles it looks like a dot-matrix exhaust pipe with smoke)
- Reduced power or the engine going into limp mode
- Increased fuel consumption
- Excess smoke from the exhaust
- A diesel that feels “breathless” under acceleration
Some vehicles will attempt a forced regeneration cycle first. If your DPF light comes on, check your owner’s manual – some manufacturers include a procedure for a manual regen on the move. If that doesn’t clear it, bring it in.
Can You Prevent a DPF Blocking?
Not always, but there are things that help:
- Give your diesel a regular long run. A 30-minute highway drive at speed lets the exhaust get hot enough to regen properly. If you’re doing mostly short trips, schedule a longer run every few weeks.
- Don’t ignore early warning signs. A DPF that’s 60% blocked is much easier (and cheaper) to clean than one that’s 95% blocked.
- Keep up with servicing. A poorly maintained engine produces more soot than a well-serviced one. Oil quality matters too – use the correct specification for your engine.
- Address other issues early. A leaking injector or a faulty EGR valve can accelerate DPF blockage significantly.
What We Offer at Core Diesel
Our DPF cleaning service covers light vehicles, 4WDs, commercial vehicles, and heavy machinery. Every job includes a pre and post flow test so you can see exactly what was achieved.
We also clean EGR valves, intercoolers, and catalytic converters – components that often contribute to DPF issues when they’re not functioning properly.
If you’ve got a DPF warning light or you’re noticing power loss in your diesel, get in touch. We’ll run a diagnostic first and tell you exactly what’s going on before any work starts.
